Abstract. Deble, L. P.; F. da S. Alves & A. S. de O. Deble. 2015. Three new species of the genus Cypella (Iridaceae, Tigridieae). Darwiniana, nueva serie 3(2): 235-253.

Three new species of Cypella section Nais from South America are described and illustrated: C. charruana, C. gloriana, and C. uliginosa. Cypella charruana occurs in Santana do Livramento (southern Brazil) and in Rivera and Artigas (northern Uruguay). It is related to C. suffusa; however, it can be easily separated by its one-flowered spathes, outer tepals with narrowed claws, longer antheral filaments, and bigger anthers. Cypella gloriana is only found in São Vicente do Sul (central-western Rio Grande do Sul State, Brazil); this species is closely related to C. pusilla from which it can be separated by its larger perigone with shallower and broader concavity, outer tepals with narrowed claws, inner tepals with blades markedly narrowed and longer towards the apex, and with glandular trichomes spreading in a small area, stamens shorter, with porrect filaments, smaller anthers, and broader connective tissue. Cypella uliginosa occurs in bogs from Entre Ríos and Corrientes in northeastern Argentina; it morphologically resembles C. crenata and C. laxa; however, C. uliginosa can be distinguished from both species by its flowers with pale translucent and shallow central concavity, inner tepals blade plicate with a deep central depression, marked by a darker area covered by ochraceous glandular trichomes, and erect or slightly porrect style branches, with the stigmatic trichomes prolonged on the proximal portion of the adaxial crests. Cypella charruana and C. gloriana are recognized as critically endangered, while the data of C. uliginosa are insufficient to establish criteria of threat. Data about phenology, geographic distribution, conservation, plus comparative tables to segregate these three new species from the related taxa, and a key to differentiate species of the section Nais are supplied.

Keywords. Bulbous; geophyte; grasslands; taxonomy.

Resumen. Deble, L. P.; F. da S. Alves & A. S. de O. Deble. 2015. Tres nuevas especies del género Cypella (Iridaceae, Tigridieae). Darwiniana, nueva serie 3(2): 235-253.

Se describen e ilustran tres nuevas especies de Cypella pertenecientes a la sección Nais para América del Sur: C. charruana, C. gloriana y C. uliginosa. La primera ocurre en Santana do Livramento (sur de Brasil) y en Artigas y Rivera (norte del Uruguay). Cypella charruana es afín a C. suffusa, distinguiéndose por las espatas unifloras, tépalos internos con unguículo más angosto, filamentos más largos y anteras más grandes. Cypella gloriana fue encontrada solamente en la Ciudad de São Vicente do Sul (centro-oeste del estado de Rio Grande de Sur, Brasil) y se relaciona con C. pusilla, de la que se separa por su perigonio más grande, con concavidad central más amplia y menos profunda, tépalos externos con unguículo más angosto, tépalos internos con lámina más angosta y más largas arriba, con tricomas glandulares distribuidos en una área más angosta, estambres más cortos con filamentos inclinados hacia atrás, anteras más cortas y conectivo amplio. Cypella uliginosa ocurre en los esteros de las Provincias de Entre Ríos y Corrientes, nordeste de Argentina, y está relacionada con C. crenata y C. laxa, diferenciándose por sus flores con una depresión central poco profunda, pálida, hialina, laminas de los tépalos internos plegada con una profunda depresión central, marcada por una área negra cubierta por tricomas glandulares de color ocráceo y ramas del estilo erectas o poco inclinadas hacia atrás, con la porción estigmática prolongada hasta la mitad de las crestas adaxiales. Cypella charruana y C. gloriana son reconocidas como críticamente amenazadas, mientras que los datos de C. uliginosa son insuficientes para establecer algún criterio de amenaza. Se suministran datos sobre fenología, distribución geográfica, y conservación, junto con tablas para separar las especies nuevas de sus especies afines y una clave para la separación de las especies de la sección Nais.

Palabras clave. Bulbos; campos; geófitos; taxonomía.

INTRODUCTION

Cypella Herbert s.s. includes ca. 25 species (Ravenna, 2005; 2009) restricted to temperate South America and contains medium-sized plants with 1-2 flowered spathes, often yellow or orange with broadly clawed tepals. A dense area of glandular trichomes is located in a central depression of the inner tepals, and the style is slender below, with branches well developed, compressed, usually divided above into prominent acute crests and with a transverse stigmatic surface on the abaxial surface at the base of the crests (Ravenna, 2003; Goldblatt & Manning, 2008; Ravenna, 2009; Deble et al., 2015). Some authors have a wider concept of the genus Cypella, including Phalocallis Herbert, Kelissa Ravenna and Onira Ravenna (Roitman & Castillo, 2007; Goldblatt & Manning, 2008; Roitman et al., 2008). On the other hand, Chauveau et al. (2012) suggest Cypella is polyphyletic, with Cypella hauthalii (Kuntze) Foster forming a strongly supported clade with Onira unguiculata (Baker) Ravenna and Kelissa brasilienis (Baker) Ravenna, while Cypella aquatilis Ravenna, C. herbertii (Herbert) Herbert, C. osteniana Beauverd, and C. pusilla (Link & Otto) Bentham & Hooker ex Jackson are placed in another clade, and Phalocallis is considered a separate genus.

Ravenna (2003) segregated Cypella into three sections: Cypella, Nais Ravenna, and Ionella. The first section includes Cypella herbertii, the type of the genus, and its related species, the name Ionella, was not validly published, and was created by Ravenna to encompass Cypella hauthalii. The section Nais was described basis on the urceolate shape of the perigone and arcuate-recurved inner tepals of Cypella aquatilis Ravenna, the type of the section, C. crenata (Vellozo) Ravenna, and C. pusilla. In subsequent studies, the following species were described under Cypella sect. Nais: Cypella curuzupensis Ravenna, C. discolor Ravenna, C. laeta Ravenna, C. laxa Ravenna, and C. suffusa Ravenna (Ravenna, 1981b; 2009).

Recent advances in the phylogeny of the genus Cypella have demonstrated the infrageneric treatment as artificial, since the genus is recognized as polyphyletic (Chauveau et al., 2012). Nevertheless, the sections Cypella and Nais, which encompass the majority of known species, are well defined and the morphological attributes that distinguish both groups are recognized as reliable to identify species (Ravenna, 2009; Deble et al., 2012a; 2012b; 2012c).

The diversity of Cypella has been underestimated, and many species have been rediscovered or newly described (Ravenna, 2005, 2009; Deble et al., 2012a; 2012b; 2012c; Chauveau et al., 2014; Deble et al. 2015). Based on the study of herbarium specimens and recent collected specimens, three new species belonging to the section Nais are here described, illustrated, and compared to related species. In addition, habitat information, geographical distribution, phenology, and conservation data are supplied. A key to distinguish the species of the section Nais is included.

MATERIAL AND METHODS

Collections from wild populations of Cypella were performed in northeastern Argentina (Corrientes, Entre Ríos, and Misiones Provinces), southern Brazil (Paraná, Rio Grande do Sul, and Santa Catarina States), central and southern Paraguay, and Uruguay, between October 2012 and January 2015. Additionally, specimens of Cypella (including types and digital images) from the following herbaria were analyzed: CTES, FCQ, FLOR, HAS, HBR, ICN, MVM, MVFA, PACA, PY, SGO and SI (Thiers, 2015). The morphological description is based on the examined material, and the terminology follows Ravenna (1981a, 1981b), Goldblatt & Manning (2008), and Beentje (2010). A stereoscopic microscope QUIMIS 766 was used for the elaboration of illustrations, and the details were drawn based on dried material, as well as cultivated living plants. Images were registered using a SONY DSC-HX300 photographic camera. Geographical coordinates of the collection sites and populations found were recorded using a Garmiam GPS MAP 60 CSx GPS receiver (Global Positioning System). The software GPS TrackMaker Professional - Version 4.9 (GTM PRO) was used to draft the cartographic base, organized in the system WGS 84 (World Geodetic System 1984), resulting in the species distribution map.

RESULTS AND DISCUSSION

Cypella charruana Deble & F. S. Alves, sp. nov. TYPE: Brazil. Rio Grande do Sul: Santana do Livramento, on the border with Uruguay, in the spring of the Quaraí River, in the midst of native grassland in moist soil on volcanic rock from the Serra Geral geological formation, 30° 57’ 44.34’’ S, 55° 43’ 33.68’’ W, 15-XI-2014 (fl, fr), L. P. Deble, A. S. de Oliveira-Deble & F. S. Alves 15108 (holotype, SI!; isotypes, MVFA!, PACA!). Figs. 1,

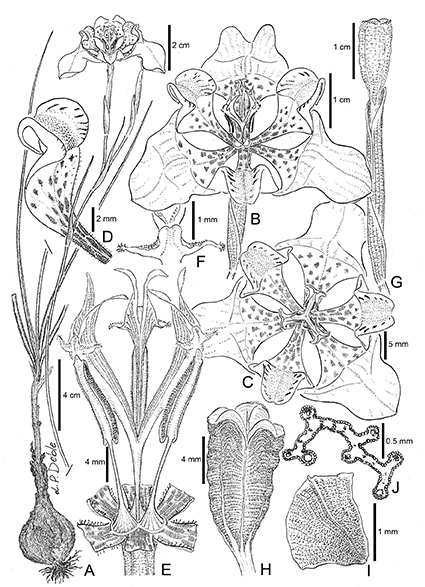

2,

7A-B.

Cypella charruana belongs to section Nais, and it is closely related to C. suffusa, however the spathes are shortly pedunculate, the claws of outer tepals are narrowed, and the stamens and styles are longer.

Plant 20–40 cm long, underground stems 5–12 cm long. Bulb subglobose to ovoid, 25–35 × 20–35 mm, prolonged in a collar up to 10 cm, sheathing the underground stem; cataphylls dark-brown, broadly ovate, apex truncate or acute. Basal leaves at anthesis 2–6, blades plicate, linear-ensiform, 14–26 × 0.2–0.5 cm. Cauline leaf 1, in the distal third of the stem, bracteiform, 3.5–9.5 × 0.1–0.5 cm, basally sheathing the stem. Flowering stems 7–14 cm long, 2–3 times branched. Spathes 1–3 per branch, 3.2–3.6 × 0.4–0.5 cm, herbaceous, pale-green, bivalved, one-flowered, pedunculate, peduncles 1.4–2.8 cm long; outer valve 1.7–2.5 cm long, the inner 3–3.5 cm long, both with membranous edges covered with short parallel dark-brown longitudinal glandular strips and dots in the distal third. Flowers predominately golden-yellow, 40–55 mm diameter; concavity of the tepals 30–38 mm diameter, 18–25 mm depth. Pedicel filiform, 3–3.5 cm long. Tepal whorls sharply dissimilar: outer tepals oblong, 34–40 mm long, panduriform, yellow-veined, concave at the base 14.5–19 mm, reflexed distally; outer tepal blades 20–28 × 15–19 mm, erect in proximal third, then revolute; outer tepal claws stained purplish-brown, narrowly cuneate, 11–14 mm long, 2–2.5 mm wide at the base, and 4–5 mm wide at the apex, trichomes scattered, more abundant in the proximal half of the claw; inner tepals arcuate–recurved, 22–28 mm long, the proximal 2/3 erect-patent, slightly inclinate, then curved upward, the distal 1/3 incurved and strongly reclinate; inner tepal blades 7.5–10 mm wide, mostly yellow, with a yellow-cream central depression densely covered by glandular trichomes, surrounded by yellow with purplish-brown oblique short stripes; inner tepal claws stained purplish-brown, narrowly cuneate, 10–11 mm long, 1.8–2.2 mm wide at the base, and 4.5–6 mm wide at the apex, trichomes scattered, more abundant in the proximal half of the claw. Staminal filaments slender, filiform, 8.4–10.5 mm long, slightly porrect, ochraceous to light yellow, dilated at the base, fused for 0.5–0.8 mm; anthers oblong 8–9.5 × 1.4–1.8 mm; connective yellow, 0.4–0.5 mm wide, pollen yellow or ochraceous. Ovary obovate–oblong, green, 6–8 × 2–3 mm. Style 8–9 mm long; style branches channeled, 9–10 mm long, crests at the apex 3, translucent and yellowish, adaxial crests lanceolate, 4.5–6.5 mm long, abaxial crest deltate, 1–1.5 mm long. Capsule obovate–oblong, 10–12 × 7–8 mm. Seeds oblong to obconical, angulate, light–brown, epidermis papillose striate, 2–2.5 mm long.

Etymology. Refers to “Charrua”, pre-historic human groups of hunters and gatherers, who inhabited the grasslands from the north of Río de La Plata.

Distribution and habitat. Cypella charruana has been found on the border between Santana do Livramento municipality, southern Brazil, and Rivera and Artigas departments, northern Uruguay, in the front of the geomorphologic unit “Cuesta de Haedo” or “Planalto da Campanha” (Müller Filho, 1970; IBGE, 1986), in high interfluvial sources, among native grasslands in moist soils, generally clayey and not very deep, developing on volcanic rocks to the “Serra Geral” geological formation (Gordon Júnior, 1947; Paulipetro, 1981; Melfi et al. 1988). The specimens grow between 220–380 m. Andrés Gonzalez (Faculdad de Agronomía, Montevideo, Uruguay) found two populations from Artigas and Rivera departments; these populations were georeferrenced, but due to the small number of individuals, no vouchers were made (Andrés Gonzalez, pers. com.)

Observations. Cypella charruana is easily distinguished from its related species by the shape of the outer tepals claws, and longer style and stamens. The perigone shape of this new species is very distinct and resembles the perigone of species of Phalocallis. This new species is placed in Cypella mainly by the inner tepals shape, and style branches with two acute adaxial crests, and one abaxial crest (vs. broad petaloid adaxial crests and lack adaxial crest in Phalocallis). Despite the morphological peculiarities, the species is undoubtedly related to C. suffusa and also to C. gloriana, this last described below, and can be distinguished from the former mainly by its one-flowered spathes, narrower claws of outer tepals, and longer filaments and larger anthers. From C. gloriana the new species differs by the pedunculate spathes, and larger floral parts. C. ravenniana is also similar to C. charruana, however can be separated by its shortly pedunculate spathes, broad outer tepal claws, and smaller size of stamens and styles. Additional features to distinguish Cypella charruana from related species are listed in the Table 1.

Table 1. Characters to distinguish Cypella charruana and C. gloriana from related species.

* BRAZIL. Rio Grande do Sul: Alegrete, Pedras Mouras, fl. fr., 06-III-2011, Deble et al. 12833 (PACA). Caçapava do Sul, Guaritas, 30°50’32”S, 53°30’06”W, fl. fr., 17-IV-2011, Deble et al. 13116 (PACA). Canguçu, estrada para Guarda Velha, fl., 02-V-2006, Schneider 1260 (ICN). ** ARGENTINA. Corrientes: Ituzaingó, San Carlos, 14, 27° 47’ 12,6’’ S, 55° 54’ 24,2’’ W, fl. and fr., 11-XII-2014, Keller & Franco 12557 (CTES). Santo Tomé, paraje Península, 28° 19’ 48’’ S, 55° 40’ 53,7’’ W, 15-IV-2014, fl, fr, Keller et al. 12073 (CTES). Candelaria: Ruta prov. 3, de cerro Corá a ruta nac. 12, 27º 30’ S, 55º 37’ W, 23-III-1998, Zuloaga et al. 6572 (SI). ***ARGENTINA. Misiones: Cainguás, predio UNLP, 1, 27° 06’ 44” S, 54° 58’ 23” W, 15-III-2000, Biganzoli et al. 830 (Holotype SI029497!, isotype CTES). Private Reserve Valle del arroyo Cuñá Pirú, 27° 06’ 44,18’’ S, 54° 58’ 24,96’’ W, 23-XII-2014, Deble & Alves 15081 (PACA, SI).

Specimens with flowers and capsules can be found between November-January. The flowers bloom in the morning and wither around midday. On cloudy days the flowers remain open until the afternoon.

Cypella charruana occurs in less than 100 km² and the area of occupancy is smaller than 10 km², moreover the populations are composed by few individuals and require highly specific habitats. Silviculture and agriculture have increased in the last ten years in the area that C. charruana occurs, resulting in a direct threat to the conservation of this species by destroying the natural habitat. Two populations of C. charruana were found in the “Área de Proteção Ambiental – APA do Ibirapuitã”, a nature conservation unit ranked as sustainable use (Brasil, 1992; Brasil, 2000); however, these populations are not protected, because the preferred environments of C. charruana have been invaded and uncharacterized by Eragrostis plana Nees (Poaceae) an exotic grass, native to Africa, which has invasive and allelopathic behavior (Coelho, 1986; Coelho, 2000; Medeiros et al., 2004; Medeiros & Focht, 2007; Medeiros et al., 2009). According to the IUCN Red List (IUCN, 2012) the species could be assigned as Critically Endangered (Cr, B1, B2a, b(iii), and D) due to the small extent of occurrence, reduced area of occupancy, few known individuals, highly specific habitat, and direct threats observed.

Specimens examined

BRAZIL. Rio Grande do Sul. Santana do Li-vramento, on the border with Uruguay, source of Quaraí River, in the midst of native grasslands in moist soil on volcanic rock, 30° 58’ 43,52’’ S, 55° 44’ 57,88’’ W, 15-XI-2014, Deble et al. 15109 (MVFA, SI); on the border with Uruguay, source of Quaraí River, in the midst of native grasslands in moist soil on volcanic rock, 30° 58’ 43,52’’ S, 55° 44’ 57,88’’ W, 15-XI-2014, Deble et al. 15110 (SI); in the source of Ibirapuitã River in moist soil, 30° 47’ 16,10’’ S, 55° 38’ 02,80’’ W, 2-I-2015, Deble & de Oliveira-Deble 15111 (PACA); in moist soils of native grasslands, 30° 38’ 57,95’’ S, 55° 41’ 22,48’’ W, 2-I-2015, Deble & de Oliveira-Deble 15112 (SI).

URUGUAY. Artigas. Suelo rocoso al margen del arroyo Sepulturas, 35º 55’ 23’’ S, 56º 06’ 14’’ W, 24-I-2015, Berazategui et al. 2762 (MVFA).

Cypella gloriana Deble & F. S. Alves, sp. nov. TYPE: Brazil. Rio Grande do Sul, São Vicente do Sul, Cerro da Glória, at the base of the hill in the northern flank, amid the native grasslands on place of soil sandy and stony soil, 29° 45’ 29,35’’ S, 55° 01’ 43,07’’ W, 25-X-2014 (fl., fr.), L. P. Deble, F. S. Alves & M. I. P. Deble 15034 (holotype, SI; isotypes, MVFA, PACA). Figs. 3, 4, 7C-D.

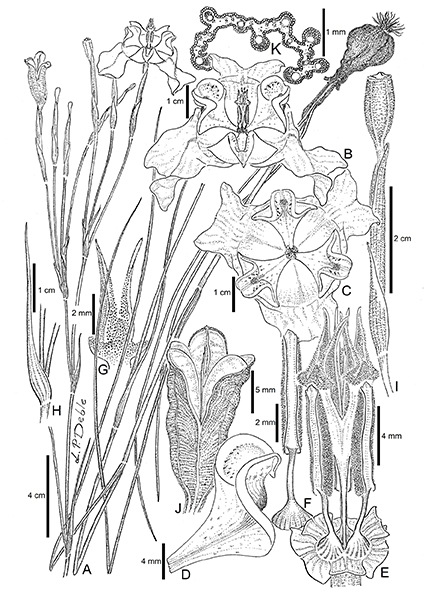

Figs. 3,

4,

7C-D.

Cypella gloriana belongs to section Nais, and it is closely related to C. pusilla, however the flowers have larger diameter of the central concavity, the inner tepal blades are narrower and longer with glandular area spreading in a small area above, the stamens show filaments smaller and porrect, and the anthers display broader connective.

Plant 8–22 cm long, underground stems 2–6 cm long. Bulb subglobose to ovoid, slightly compressed, 12–20 × 10–20 mm, prolonged in a collar up to 3 cm, sheathing the underground stem; cataphylls dark-brown, broadly ovate, apex truncate or acute. Basal leaves at anthesis 2–5, blades plicate, and narrowly linear-ensiform, 8–25 × 0.1–0.3 cm. Cauline leaf reduced at one bract, in the distal third of the stem, 2.5–9.5 × 0.05–0.2 cm, at the base sheathing the base of spathes. Flowering stems 7–12 cm long, unbranched or with 2–3 branches up to 1 cm long. Spathes 2–5 per branch, 2.2–3 × 0.2–0.3 cm, herbaceous, pale-green, bivalved, one-flowered, sessile or shortly pedunculate, peduncles up to 0.8 cm long; outer valve 1.2–1.8 cm long, the inner 2.1–2.9 cm long, both with membranous edges covered with short parallel dark–brown longitudinal glandular strips and dots in the distal third. Flowers predominately yellow, 25–35 mm diameter; concavity of the tepals 18–24 mm diameter, 8–12 mm depth. Pedicel filiform, 2.5–3.5 cm long. Tepal whorls sharply dissimilar: outer tepals oblong, 22–27 mm long, yellow veined, concave at the base 8.5–12 mm, reflexed distally or revolute; outer tepal blades yellow, slightly panduriform, 15–20 × 10–12 mm, erect in proximal third, then revolute; outer tepal claws stained purplish–brown or pale–brown, cuneate, 6.5–7.5 mm long, 2.8–3.3 mm wide at the base, and 6–7 mm wide at the apex, trichomes scattered, more abundant in the proximal half of the claw; inner tepals arcuate-recurved, 16–20 mm long, the proximal 2/3 erect–patent, slightly inclined, then curved upward, with a depression in the distal portion, then the distal 1/3 incurved and strongly reclined; inner tepal blades 6–7 mm wide, mostly yellow, with a shiny yellow-cream central depression densely covered by glandular trichomes, surrounded by a lateral high part yellow, without stains; inner tepal claws stained purplish-brown or pale-brown, narrowly cuneate, 7–8 mm long, 1.2–1.8 mm wide at the base, and 4–5 mm wide at the apex, trichomes scattered, more abundant in the proximal half of the claw. Staminal filaments filiform 4.5–5 mm long, porrect, dull-yellow, base dilated purple stained, fused for 0.8–1.1 mm; anthers oblong 4.5–5.5 × 1.2–1.4 mm; connective light-yellow, 0.5–0.7 mm wide, pollen greenish-yellow to ochraceous. Ovary obovate, green, 5–6 mm × 2–2.5 mm. Style 5.5–6.5 mm long; style branches channeled, 5–6 mm long, crests at the apex 3, translucent and yellowish, adaxial crests lanceolate, 1.5–2.5 mm long, abaxial crest deltate, 1 mm long. Capsule obovate, 7–10 mm × 5–6 mm. Seeds oblong to obconical, angulate, light-brown, epidermis papillose striate, 1.5–2 mm long.

Etymology. The epithet gloriana refers to the place of occurrence of this species, at the base of the hill denominated “Cerro da Glória”, in São Vicente do Sul municipality, Rio Grande do Sul State, Brazil.

Distribution and habitat. Cypella gloriana was only found in the hill locally known as “Cerro da Glória” in São Vicente do Sul Municipality, central-western Rio Grande do Sul State, Brazil. The specimens grow at the base of the hill, in an area of colluvial deposits, where the soil is sandy and very stony, at elevations between 100–180 m. According to Reckziegel & Robaina (2008), the colluvial deposits of Cerro da Glória are the contact of two distinct lithological conditions, the medium-grained sandstone of the “Formação Guará” and the fine-grained sandstone with micaceous minerals of the “Formação Sanga do Cabral”. The lithopedological conditions resulting are peculiar and not very abundant in the region, which could explain, in part, the high level of endemism of C. gloriana. A restricted geographic range associated to mountains is reported for two other species of the genus, Cypella trimontina Ravenna (Ravenna 2009: 2), micro-endemic in the locality of Tres Cerros, La Cruz, San Martín Department, Corrientes, Argentina, and C. magnicristata Deble (Deble et al., 2012: 63), narrowly endemic in the range of hills of the “Cerro do Jarau”, Quaraí Municipality, Rio Grande do Sul State, Brazil.

Observations. Cypella gloriana is closely related to C. pusilla, both species are short, with sessile or almost sessile spathes and small flowers. In dried material, these species are difficult to distinguish. However, Cypella gloriana can be separated from C. pusilla mainly by its bigger perigone with broader and less depth concavity, outer tepals with narrowed claws, inner tepals with blades markedly narrower, and longer upwards, and with glandular trichomes spreading in a small area, stamens shorter, with porrect filaments, smaller anthers, and broader connective. Cypella gloriana differs from C. charruana, C. ravenniana, and C. suffusa by its sessile or almost sessile spathes, and by the smaller size of all floral organs. Additional features that distinguish C. gloriana from its allies are listed in the Table 1.

Specimens with flowers and capsules were found between October-November. The flowers bloom in the morning and wither around midday. On cloudy days flowers remain opened until afternoon.

Cypella gloriana occurs in less than 10 km² and the area of occupancy is smaller than 2 km², where all individuals known belong to a single population. Though several individuals compose this population, the specimens are highly threatened by intensification of the agriculture and by mineral extraction, mainly to earthmoving of routes. According to the IUCN Red List (IUCN, 2012) the species could be assigned as Critically Endangered (CR, B1, B2a, b(iii)) due to the small extent of occurrence, reduced area of occupancy, the single population known, decline in the quality of habitat, and a probably low genetic variability.

Specimens examined

BRAZIL. Rio Grande do Sul. São Vicente do Sul, on sandy grasslands, 29° 45’ 27,62’’ S, 55° 01’ 36,72’’ W, 2-XI-2012, Deble & de Oliveira-Deble 12376 (PACA, SI); São Vicente do Sul, Cerro da Glória, base of the Hill, sandy grasslands, among stones, 29° 45’ 44,92’’ S, 55° 01’ 38,61’’ W, 25-X-2014, Deble et al. 15035 (PACA, SI).

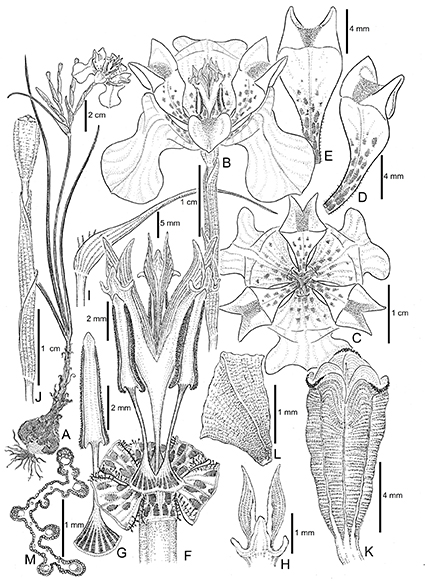

Cypella uliginosa Deble & F. S. Alves, sp. nov. TYPE: ARGENTINA. Corrientes: San Martín, La Cruz, Provincial Route 114, close to the “Bañado Guaviravi”, in boggy land, flowers pale-yellow, 29° 10’ 07,15’’ S, 56° 42’ 51,30’’ W, 22-XII-2014 (fl., fr.), L. P. Deble & F. S. Alves 15181 (holotype, SI; isotype, MVFA).

Cypella uliginosa belongs to section Nais, and it is closely related to C. laxa, however differs by its inner tepal blade deeply folded, filaments erect, and style with fused branches in the proximal part.

Plant 50–120 cm long, underground stems 14–20 cm long. Bulb subglobose, 20–30 × 20–30 mm, prolonged in a short collar up to 2 cm, sheathing the proximal part of the undergrown stem; cataphylls brown to stramineous, broadly ovate, apex cute, often fimbriate. Basal leaves at anthesis 1–2, blades plicate, linear–ensiform, 32–58 × 0.2–0.6 cm. The most basal cauline leaf in the proximal third of the stem, 25–54 × 0.3–1 cm, at the base sheathing the base of the stem; the upper leaves gradually smaller, the most distal bracteiform, ovate–lanceolate, 1.5–3.5 × 0.5–1 cm, at the base sheathing the basal part of the peduncles. Flowering stems 40–85 cm long, with 2–5 branches in the distal third. Spathes 2–5 per branch, 3.2–3.8 × 0.2–0.4 cm, herbaceous, pale-green, bivalved, one–flowered, pedunculate, peduncles 3.5–9.4 cm long; outer valve 1.9–2.5 cm long, the inner 2.2–3.7 cm long, both with membranous edges covered with sparse parallel light-brown longitudinal glandular strips. Flowers yellow or whitish–cream, 40–50 mm diameter; concavity of the tepals 26–30 mm diameter, and 6–10 mm depth. Pedicel filiform, 3.5–4 cm long. Tepal whorls sharply dissimilar: outer tepals oblong, 36–40 mm long, panduriform, concave at the base for 13–16 mm, yellow or cream veined, reflexes distally; outer tepal blades yellow or whitish-cream, 28–32 × 15–18 mm, provides of a pale–brown or purplish–brown central stripe in the proximal half, erect in proximal third, then revolute; outer tepal claws white-cream or light-yellow, translucent, without stains, with the central stripe of the blades becoming erased distally, broadly cuneate, 7.5–9.5 mm long, 5.4–7.5 mm wide at the base, and 13–14 mm wide at the apex, with scattered trichomes. Inner tepals patent-geniculate, recurved, 15–20 mm long, the proximal 2/3 patent, then curved, with a deep depression in the distal portion, then the distal 1/3 incurved and strongly reclined; inner tepal blades 13–15 mm wide, deeply folded, mostly yellow or whitish-cream, with a darker central depression densely covered by glandular trichomes, surrounded by a lateral high part yellow or cream, with purplish-blue spots or short stripes; inner tepal claws white-cream or light-yellow, translucent, without stains, cuneate, 8–9 mm long, 1.5–1.8 mm wide at the base, and 4–5 mm wide at the apex, with trichomes scattered. Staminal filaments filiform 3–4 mm long, erect or slightly porrect, purple at both ends, and light–purple in the middle part, base dilated light–purple or stained purple, fused for 0.9–1.2 mm; anthers oblong 7.5–8.5 × 2–2.2 mm; connective purple at both ends, and light–purple in the middle part, 0.5–0.7 mm wide, pollen ochraceous to dark–brown. Ovary obovate-oblong, pale-green, 8–10 × 2.2–3 mm. Style 5–5.5 mm long; style branches channeled, 5–6 mm long, slightly porrect, connected in the proximal half, crests at the apex 3, purplish-yellow, adaxial crests lanceolate, 4–5 mm long, abaxial crest deltate, 1–1.5 mm long, densely covered by stigmatic trichomes extending up to proximal part of adaxial crests. Capsule clavate-oblong, 16–22 × 7–9 mm. Seeds not seen.

Etymology. From the Latin “uliginosus” that means boggy soils, and refers to the habitat of this species, growing exclusively on bogs.

Distribution and habitat. Cypella uliginosa occurs in bogs of Entre Ríos and Corrientes Provinces, northeastern Argentina. The individuals grow exclusively in boggy soils, in the Argentinean eco-regions of “Pampa”, “Campos y Malezales”, “Esteros del Iberá” and most likely also in the eco-region of “Espinal” (for the eco-regions in Argentina see Burkart et al., 1999; Brown & Pacheco, 2006). Despite only three populations are known, it can be rather frequent because their typical habitat is very abundant in northeastern Argentina. The presence of few herbaria specimens is likely owed to the difficulty of collecting in boggy areas, and to the visualization of the plants given the vegetative parts are easily hidden behind the grasses. Furthermore, the bulbs are usually underground about 20 cm, being difficult to obtain.

Observations. Cypella uliginosa is easily segregated from other species of the section Nais, mainly by the perigone with scarcely deep central concavity, and inner tepals with deeply folded blade. Despite these peculiarities, this species morphologically resembles C. crenata and C. laxa, these two species also grow on bogs, and display similar habit and long pedunculate spathes. However, C. uliginosa can be distinguished from C. crenata by its flowers with yellow or whitish-cream tepals, the inner tepals with folded blades, the stamens with shorter filaments and bigger anthers, and style branches connected at the proximal half. The new species differs from C. laxa in the following aspects: tepals with claws pallid translucent, with few deep central concavity, blade of inner tepals deeply folded, with a deep central depression, marked by a darker area covered by ochraceous glandular trichomes, and erect or slightly porrect style branches, with stigmatic trichomes prolonged on the proximal portion of the adaxial crests. The shape of the perigone resembles that of C. curuzupensis, however this species displays shorter height, and much smaller flowers. Additional features to distinguish C. uliginosa from related species are listed in the Table 2.

Table 2. Characters to distinguish Cypella uliginosa from related species.

*BRAZIL. Minas Gerais: Caldas, 22-XI-1874, Regnell III-1216 (S1). ** PARAGUAY. Villa Rica: Mbubevo, Hansen 3871 (SI). *** BRAZIL. Paraná: Tijucas do Sul, Hatschbach 25400 (MBM, CTES). PARAGUAY. Alto Paraná: Reserva Biológica Itabó, Caballero Marmori1326 (PY, CTES).

It was verified that individuals with whitish-cream flowers display spathes with shorter inner valves, and consequently the pedicels stay visible in the distal third. These specimens grow sympatrically with the typical individuals, however no intermediary forms were observed. Other morphological differences were not detected with further studies being necessary to check if these two variations found are enough to recognize these specimens at distinct taxonomic levels.

Specimens with flowers and capsules were collected between November and December. The flowers bloom in the morning and wither around midday. On cloudy days the flowers remain open until mid afternoon.

Cypella uliginosa ranges more than 50,000 km², and the area of occupancy known is smaller than 1,000 km². Only three populations have been registered, which are moreover severely fragmented. Besides this, further collections in the area of occurrence of this species are necessary to increase and update information about C. uliginosa. This species was found growing only in swamp areas. These environments have been extensively used by man, suggesting C. uliginosa could be endangered. However, with the actual data available this species is previously ranked according with IUCN Red List (IUCN, 2012) as Insufficient Data available.

ARGENTINA. Corrientes. Depto. Santo Tomé, Paraje Galarza, “campo inundable, pajonal de Andropogon lateralis, todas las piezas florales amarillas”, 28° 06’ 02’’ S, 56° 40’ 61’’ W, 23-XI-1999, Arbo et al. 8420 (CTES). Entre Ríos. Depto. Colón, Ubajay, National Park El Palmar, in bogs, flowers yellow, 31° 53’ 02,32’’ S, 58° 14’ 11,87’’ W, 21-XII-2014, Deble & Alves 15179 (SI); Ubajay, National Park El Palmar, in bogs, flowers whitish-cream, 31° 53’ 02,32’’ S, 58° 14’ 11,87’’ W, 21-XII-2014, Deble & Alves 15180 (SI).

Key to species of section Nais

CONCLUSIONS

The total number of species in Cypella sect. Nais is now thirteen, with descriptions of C. charruana, C. gloriana, and C. uliginosa. Except C. crenata endemic to swamp areas among “cerrado” in southern Minas Gerais State, southeastern Brazil, the other species grow exclusively in northeastern Argentina (Corrientes, Entre Ríos, and Misiones Provinces), southern Brazil (Paraná, Rio Grande do Sul, and Santa Catarina States), central and southern Paraguay, and Uruguay. The geographic distribution of these three new species reinforce the high diversity of the genus in northeastern Argentina, northern Uruguay, and southern and western Rio Grande do Sul State, Brazil, showing that the grasslands of these regions are the richest in number of taxa of Cypella sect. Nais. Moreover, the majority of these species should be recognized as threatened, mainly because of the reduced distribution area of the greater part of the taxa, specific habitat of occurrence, and decline in the quality of habitat, mainly by intense use of the grasslands by man. Actions for the conservation of these environments are urgently needed so these species do not become extinct in nature.

ACKNOWLEDGMENTS

We are indebted to Andrés González for photos of Cypella charruana and update on the geographic range of this species in Uruguay. Our gratitude also goes to curators and employees of the herbaria mentioned, as well as to Eduardo Alonso Paz for his help during the visit to Montevideo. The authors also thank Maria Inácia Paz-Deble for companionship during the trip to São Vicente do Sul, Rio Grande do Sul State, Brazil.

INTRODUCTION
MATERIAL AND METHODS
RESULTS AND DISCUSSION
CONCLUSIONS
ACKNOWLEDGMENTS

BIBLIOGRAPHY

Beentje, H. 2010. The Kew Plant Glossary: an illustrated dictionary of plant terms. Kew: Royal Botanic Gardens.

Brasil. 1992. Decreto Federal N° 529, de 20 de maio de 1992.

Brasil. 2000. Lei 9.985, de 18 de julho de 2000.

Brown, A. D. & S. Pacheco. 2006. Propuesta de actualización del mapa ecorregional de la Argentina, in A. Brown, U. Martínez Ortiz, M. Acerbi, & J. Corcuera (eds.), La Situación Ambiental Argentina 2005. Buenos Aires: Fundación Vida Silvestre Argentina.

Burkart, R.; N. O. Bárbaro, R. O. Sánchez & D. A. Gómez. 1999. Ecorregiones de la Argentina. Buenos Aires: Secretaría de Recursos Naturales y Desarrollo Sustentable, Administración de Parques Nacionales.

Chauveau, O.; L. Eggers, T. T. Souza-Chies, & S. Nadot. 2012. Oil-producing flowers within the Iridoideae (Iridaceae): evolutionary trends in the flowers of the New World genera. Annals of Botany London 110: 713-729. DOI: http://dx.doi.org/10.1093/aob/mcs134

Chauveau, O.; T. Pastori, T. T. Souza-Chies, & L. Eggers. 2014. Overlooked diversity in Brazilian Cypella (Iridaceae, Iridoideae): four new taxa from the Río de la Plata grasslands. Phytotaxa 174 (1): 25-42. DOI: http://dx.doi.org/10.11646/phytotaxa.174.1.2

Coelho, R.W. 1986. Substâncias Fitotóxicas Presentes no Capim Annoni-2. Pesquisa Agropecuária Brasileira 21: 255-263.

Coelho, R.W. 2000. Efeito alelopático em Eragrostis plana. Agropecuário Clima Temperado 3: 69-74.

Deble, L. P. 2012. Panorama da família Iridaceae no Bioma Pampa, en A. S. de Oliveira Deble, L. P. Deble & A. L. S. Leão (eds.), Bioma Pampa: Ambiente × Sociedade: 11-29.

Deble, L. P.; A. S. de Oliveira-Deble, F. da S. Alves. 2012a. Cypella discolor é redescoberta nos campos do Oeste e Sudoeste do Rio Grande do Sul, en Oliveira-Deble, A. S. de, L. P. Deble & A. L. S. Leão (eds.), Bioma Pampa: Ambiente × Sociedade: 68-76.

Deble, L. P.; A. S. de Oliveira-Deble, F. da S. Alves 2012b. New Record of Cypella sect. Cypella (Iridaceae: Tigridieae) from Brazil. Balduinia 35: 19-26.

Deble, L. P.; A. S. de Oliveira-Deble, F. da S. Alves. 2012c. Two new species of Cypella (Iridaceae: Tigridieae) from Rio Grande do Sul, Brazil. Phytotaxa 71: 59-68. DOI: http://dx.doi.org/10.11646/phytotaxa.71.1.12

Deble, L. P.; F. da S. Alves; A. González; A. S. de Oliveira-Deble. 2015. Three new species of Cypella (Iridaceae) from South America, and taxonomic delimitation of C. suffusa Ravenna. Phytotaxa 236(2):101-120. DOI: http://dx.doi.org/10.11646/phytotaxa.236.2.1

Goldblatt, P. & J. C Manning. 2008. The Iris Family. Natural History and Classification. Portland: Timber Press.

Gordon Júnior, M. 1947. Classificação das formações gondwânicas do Paraná, Santa Catarina e Rio Grande do Sul. Notas Preliminares e Estudos, DNPM/DGM, Rio de Janeiro 38: 1−20.

IBGE 1986. Instituto Brasileiro de Geografia e Estatística. Levantamento de Recursos Naturais. v. 33. Folha SH.22 Porto Alegre e parte das Folhas SH.21 Uruguaiana e SI.22 Lagoa Mirim: geologia, geomorfologia, pedologia, vegetação e uso potencial da terra. Rio de Janeiro: IBGE.

IUCN. 2012. IUCN Red List Categories and Criteria: Version 3.1. Second edition. Gland, Switzerland and Cambridge, UK: IUCN.

Medeiros, R. B. & T. Focht. 2007. Invasão, prevenção, controle e utilização do capim-annoni-2 (Eragrostis plana Ness) no Rio Grande do Sul, Brasil. Pesquisa Agropecuária Gaúcha 13: 105-114.

Medeiros, R. B.; V. D. Pillar & J. C. L. Reis. 2004. Expansão de Eragrostis plana Ness. (Capim Annoni-2) no Rio Grande do Sul e indicativos de controle. XX Reunión del Grupo Técnico Regional del Cono Sur en Mejoramiento y Utilización de los Recursos Forrajeros del Área Tropical y Subtropical. Grupo Campos Salto: 208-211.

Medeiros, R. B.; J. C. Saibro & T. Focht. 2009. Invasão de capim-annoni (Eragrostis plana Nees) no bioma Pampa do Rio Grande do Sul, en V. P. Pillar et al. (eds), Campos Sulinos - conservação e uso sustentável da biodiversidade. Brasilia: MMA.

Melfi, A. J.; E. M. Piccirillo & A. J. R. Nardy. 1988. Geological and magmatic aspects of the Parana Basin: an introduction, in E. M. Piccirillo & A. J. Melfi (eds.), The Mesozoic Flood Volcanism of the Parana Basin: petrogenetic and geophysical aspects. São Paulo: USP.

Müller Filho, I. L. 1970. Notas para o estudo da geomorfologia do Rio Grande do Sul. Santa Maria: Imprensa Universitária – UFSM.

PAULIPETRO. 1981. Projeto de Análise Morfoestrutural Integrada em Semidetalhe na Bacia do Paraná - Área Ponte Serrada, Vargeão, Faxinal dos Guedes: Relatório RT-094/81. São Paulo: CPRM.

Ravenna, P. 1981a. A submerged new species of Cypella (Iridaceae), and a new section for the genus (s.str.). Nordic Journal of Botany 1: 489-492. DOI: http://dx.doi.org/10.1111/j.1756-1051.1981.tb00714.x

Ravenna, P. 1981b. Eight new species in the genus Cypella (Iridaceae). Wrightia 7 (1): 15-21.

Ravenna, P. 2003. Flora de Paraguay. Iridaceae. Botanica Australis 4: 1-60.

Ravenna, P. 2005. New species of South American bulbous Iridaceae. Onira 10 (13): 39-45.

Ravenna, P. 2009. A survey in the genus Cypella and its allies (Iridaceae). Onira 12 (1): 1-11.

Reckziegel, E. W. & L. E. de S. Robaina. 2008. Mapeamento das unidades morfolitológicas da área situada entre os rios Jaguari e Ibicuí – São Vicente d Sul, RS. Revista Geografia, Ensino e Pesquisa (Edição Especial), 12 (1): 957-971.

Roitman, G.; I. Maza & J. A. Castillo. 2008. Iridaceae, in F. O. Zuloaga, O. Morrone & M. J. Belgrano (eds.), Catálogo de las Plantas Vasculares del Cono Sur, vol. I. Monographs in Botany from the Missouri Botanical Garden 107: 423-453.

Roitman, G. & J. A. Castillo. 2007. Novedades taxonómicas y nomenclaturales para la flora vascular del cono sur de Sudamérica: nuevas combinaciones en Iridaceae. Darwiniana 45: 236-241.

Thiers, B. [continuing updated]. Index Herbariorum: A global directory of public herbaria and associated staff. New York Botanical Garden´s Virtual Herbarium. http://sweetgum.nybg.org/ih. Accessed: December, 2014.
